VMB1RYSMini Single Channel Changeover Relay Module (for Standalone and Velbus Operation)

75,00 € 75,00 €
  • Colour
  • Protocol
  • Input voltage rating VDC 1
  • Input voltage rating VDC 2
  • Maximum output voltage rating VAC
  • Maximum output voltage rating VDC
  • IP rating
  • Possible address
  • Potential free contacts
  • Instruction manual languages
  • Number of channels
  • Maximum operating temperature
  • Minimum operating temperature
  • DIN rail
  • Programmable timer functions
  • Number of modes
  • Height unit
  • Width unit
  • Depth unit
  • Weight unit
  • Material
  • Primary colour
  • Additional colours
  • Detailed information
  • Maximum wire size mm²
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Manuals
User manual
Downloads
VelbusLink (EN/NL/FR) - Latest version Velbus Installation Guide, Part 1: Hardware and Cabling Velbus Installation Guide, Part 2: Configuration Velbus Troubleshooting Guide VelbusLink 10.9.7 (EN/NL/FR) - Previous version Velbus consumption calculator
Info Sheets
Infosheet Velbus actions by module (click on an action to see a description)

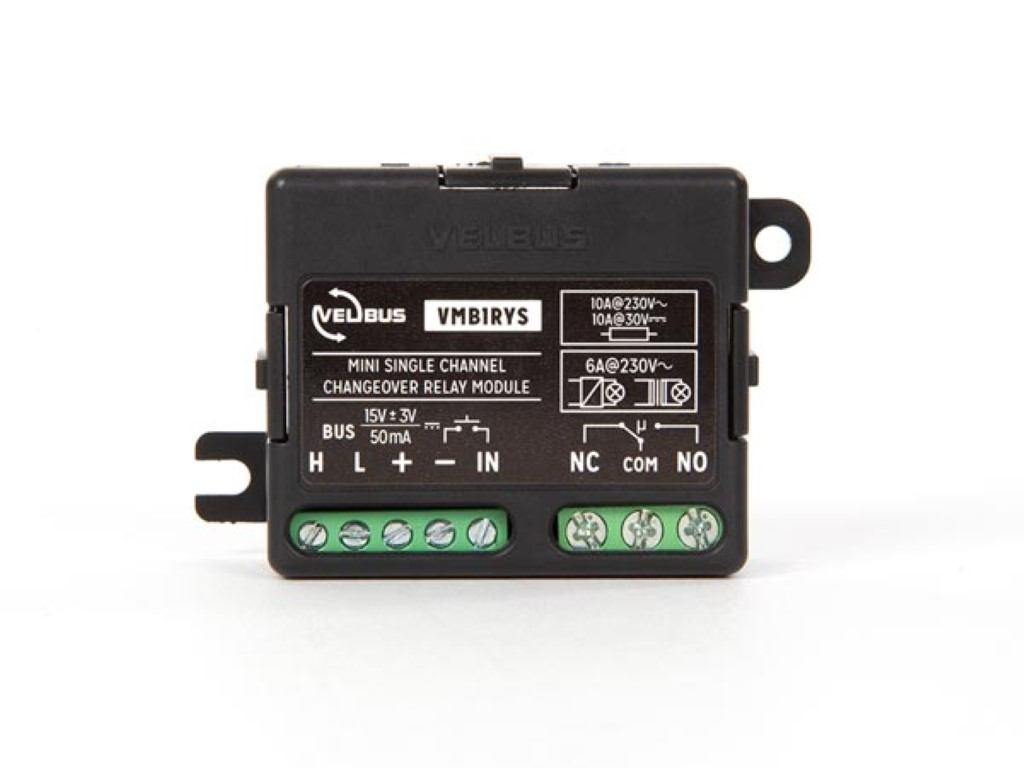

Mini 1-channel changeover relay module.

Can be used in standalone mode (a push-button operates the relay directly), or in Velbus mode (input and relay are used as configurable Velbus channels)

Features

  • 80A high inrush current changeover relay with potential free contacts
  • for switching capacitive, inductive or resistive loads
  • standalone mode: in standalone mode a push-button connected to the input operates the relay

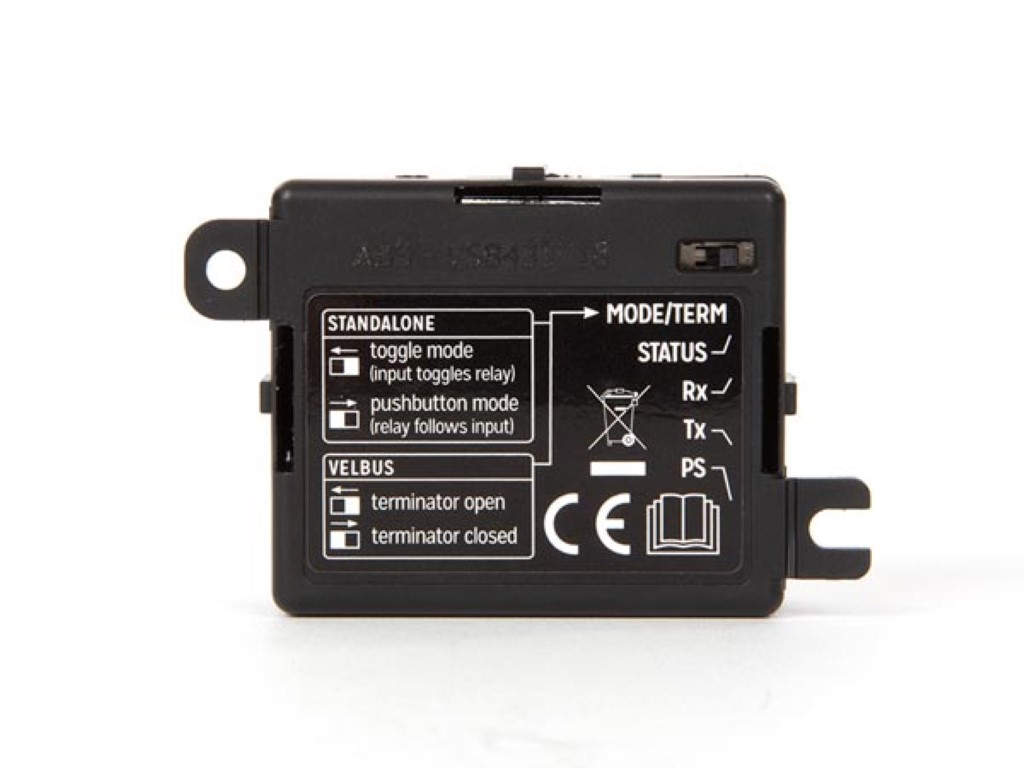

  • momentary or toggle mode can be selected by toggling the slide switch on the back
  • Velbus mode: in Velbus mode the module is connected to a Velbus domotics system
  • the relay and input are used as Velbus output and input channels
  • firmware upgradeable through the Velbus system
  • CAN terminator switch with state detection
  • bus error state indicated by led flashes
  • detection of power supply undervoltage indicated by led flashes (standalone and Velbus mode)
  • fire retardant ABS case with cuttable mounting brackets for screws and m3 bolts
  • leds for power supply, Rx (Receive), Tx (Transmit) and relay status

Specifications

Connectivity & Smart Features
Protocol Velbus
Electrical Properties
Input voltage rating VDC 1 12 V
Input voltage rating VDC 2 18 V
Maximum output voltage rating VAC 230 V
Maximum output voltage rating VDC 30 V
Environmental & Sustainability
IP rating IP10
Functional Features
Possible address 250
Potential free contacts Yes
Other
Instruction manual languages Dutch / English / French
Performance & Technical Specs
Number of channels 1
Maximum operating temperature 50 °C
Minimum operating temperature -10 °C
DIN rail No
Programmable timer functions No
Number of modes 2
Physical properties
Height unit 37 mm
Width unit 57 mm
Depth unit 19 mm
Weight unit 35 g
Material Fire-resistant ABS
Primary colour Black
Additional colours Green
Detailed information <ul><li>Maximum capacitive current at 230 VAC 6 A </li><li> Maximum current consumption 50 mA </li><li> Maximum inductive current at 230 VAC 6 A </li><li> Maximum resistive current at 230 VAC 10 A </li><li> Maximum resistive current at 30 VDC 10 A</li></ul>
Maximum wire size mm² 1.5 mm²
