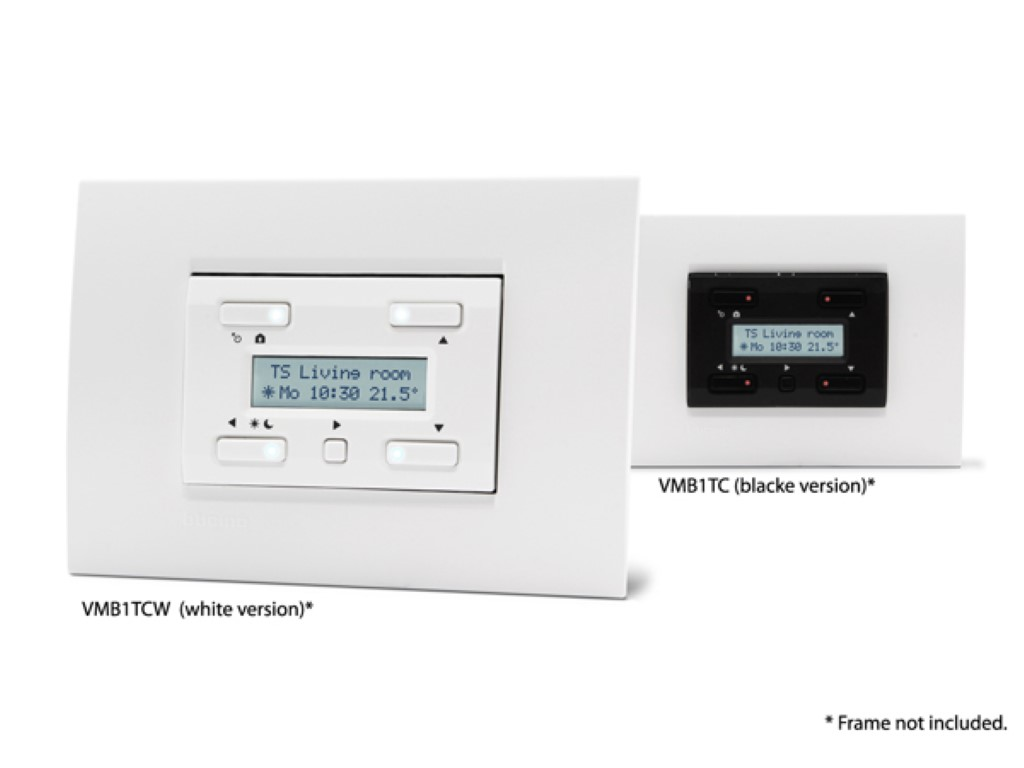

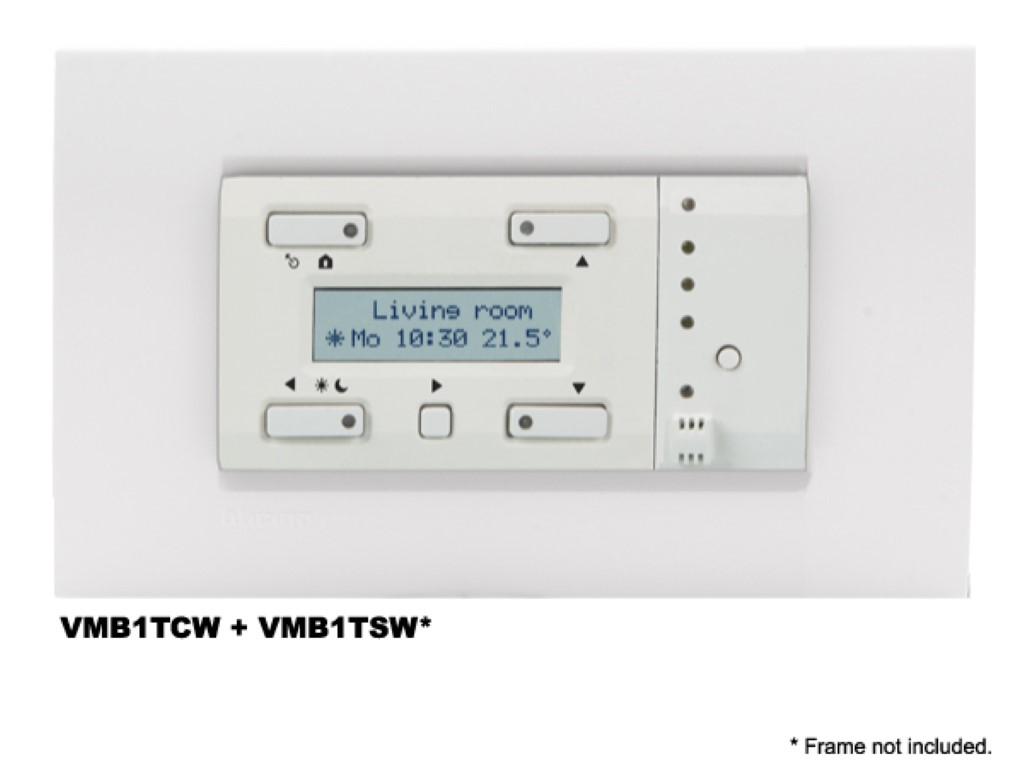

VMB1TCWtemperature controller with LCD display and time backup for use with VMB1TS(W), white

87,60 € 87,60 €
  • Battery composition
  • Colour
  • Protocol
  • Connection type
  • Current consumption
  • Input voltage rating VDC 1
  • Input voltage rating VDC 2
  • Backup battery voltage
  • Backup battery included
  • Backlight type
  • Home automation compatibility
  • Number of batteries
  • Backup battery
  • Backup battery capacity
  • Backup battery type
  • Communication type
  • Maximum cooling range
  • Maximum heating range
  • Minimum cooling range
  • Minimum heating range
  • Height unit
  • Width unit
  • Depth unit
  • Weight unit
  • Material
  • Primary colour
  • Display type
  • Battery IEC size
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Manuals
Extended user manual for VMB1TC Getting started manual Short user manual Menu overview
Downloads
VelbusLink (EN/NL/FR) - Latest version Velbus Installation Guide, Part 1: Hardware and Cabling Velbus Installation Guide, Part 2: Configuration Velbus Troubleshooting Guide VelbusLink 10.9.7 (EN/NL/FR) - Previous version Velbus consumption calculator
Info Sheets
Datasheet Infosheet Velbus actions by module (click on an action to see a description)

Verify the temperature in each room and adjust when desired.

Set up a weekly program for the living room, set the whole system to night mode for 21 days, set the bathroom temperature to 24° for 2 hours… are some of the options.

It doesn't make a difference whether you use a centralized heating system or local heaters.

Compatible with Bticino® frames : Living®, Light® & Light-Tech®

Features

  • multi-language menu (EN/FR/DE/ES/NL)
  • label for each sensor (max 16 characters)
  • one button direct sensor access
  • up to 32 sensors per controller
  • zone creation (max 7)
  • night / Day or Comfort setting
  • programmable week/day timer, 31 steps per sensor
  • wake-up function with automatic heating option
  • sleep function (temporary program override)
  • cooling or heating option
  • multiple temperature alarms (anti freeze, anti overheat...)
  • celsius or Fahrenheit display
  • adjustable hysteresis
  • history: min./max. temperature and total activated time
  • low backup battery indication
  • pin code protection for configuration menu
  • 2 lines 16CH LCD with white LED backlight

Specifications

Chemical & Material Composition
Battery composition Lithium
Connectivity & Smart Features
Protocol Velbus
Connection type Local / Pc
Electrical Properties
Current consumption 50 mA
Input voltage rating VDC 1 12 V
Input voltage rating VDC 2 18 V
Backup battery voltage 3 V
Functional Features
Backup battery included Yes
Performance & Technical Specs
Backlight type White
Home automation compatibility Bticino® Frames Light® / Bticino® Frames Light® Tech / Bticino® frames Living®
Number of batteries 1
Backup battery Yes
Backup battery capacity 230 mAh
Backup battery type CR2032 (5004LC)
Communication type Interface / Velbuslink
Maximum cooling range 54 °C
Maximum heating range 54 °C
Minimum cooling range 0 °C
Minimum heating range 0 °C
Physical properties
Height unit 44 mm
Width unit 66 mm
Depth unit 40 mm
Weight unit 140 g
Material PVC (polyvinyl chloride)
Primary colour White
Display type LCD
Battery IEC size CR2032 (5004LC)
