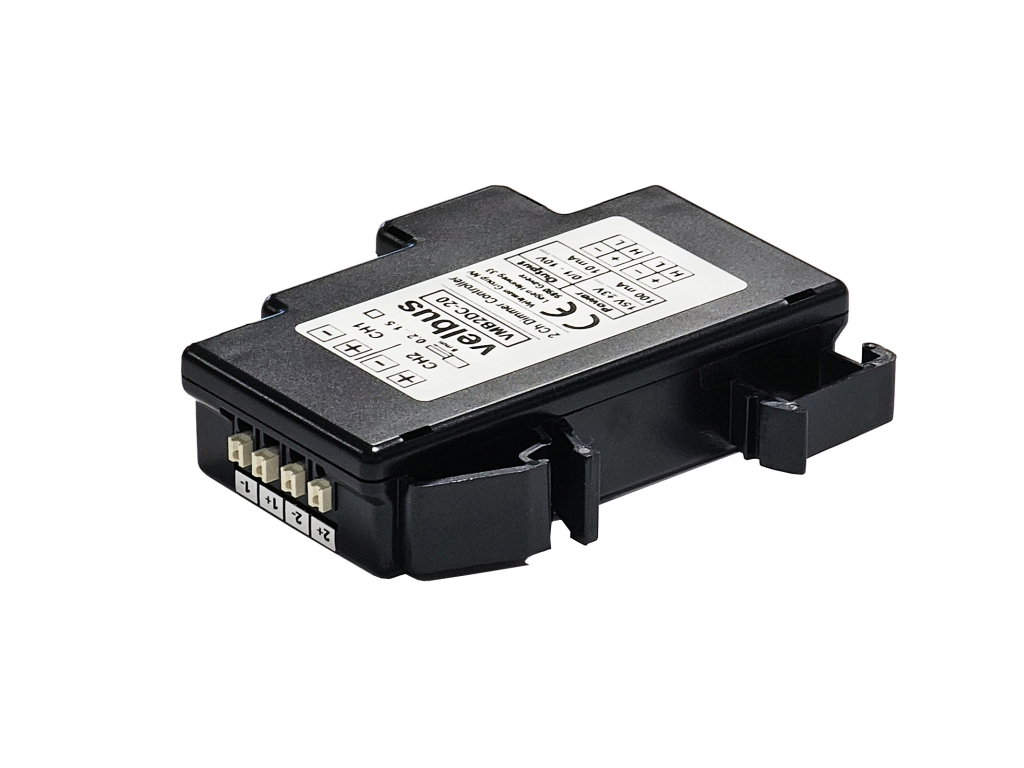

VMB2DC-202 Channel 0/1-10V Universal Dimmer Controller

The VMB2DC-20 is a compact 2-channel dimmer controller that provides 0-10?V or 1-10?V control signals for external dimmer modules.

Thanks to its slim DIN1 form factor, it fits neatly on a DIN rail and takes up very little space in the cabinet.

Perfect for installations where only two dimming channels are needed, while offering all the familiar Velbus features such as scenes, timers, and automation.

Smart lighting made simple!

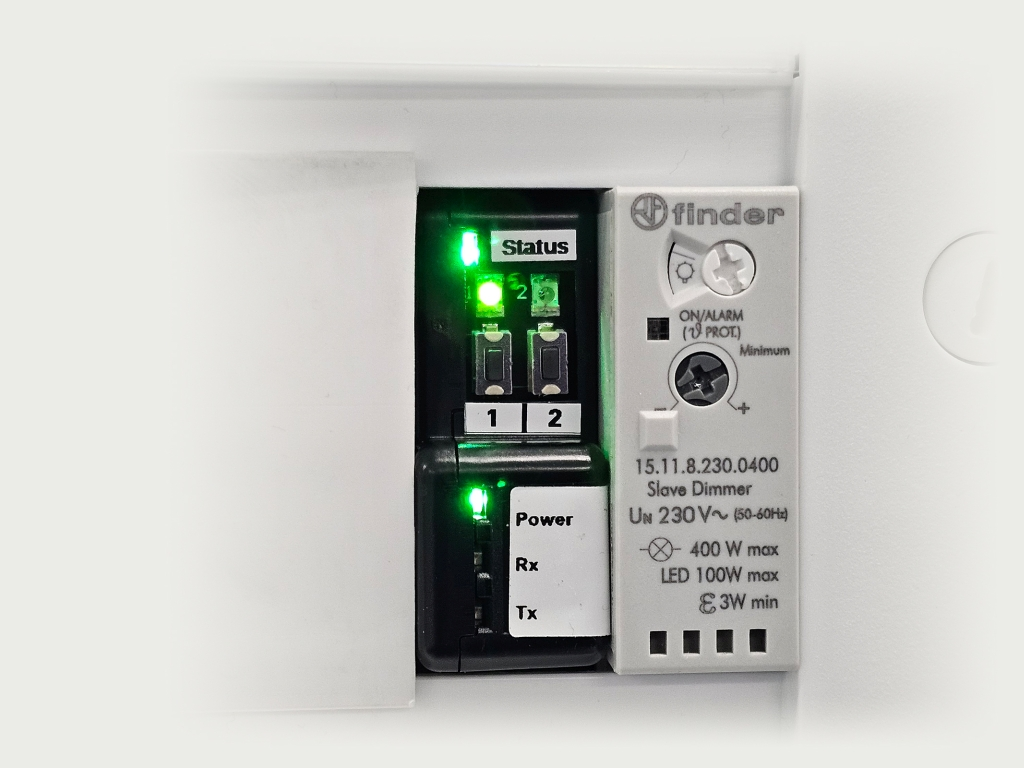

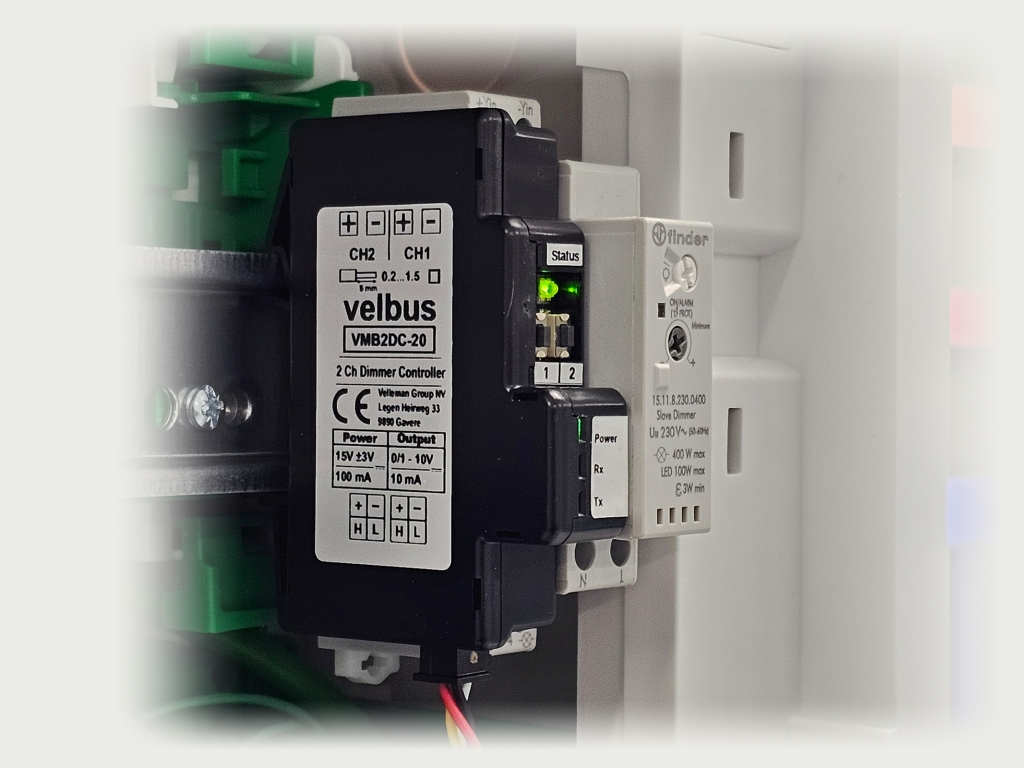

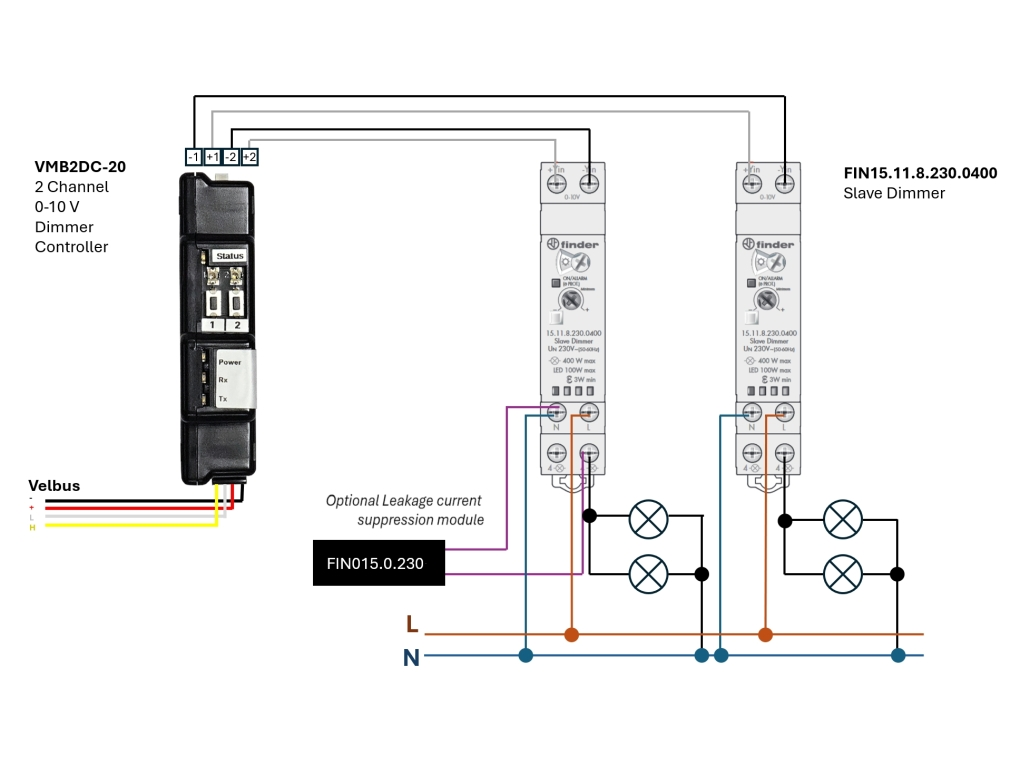

When combined with the Finder FIN15.11.8.230.0400 slave dimmer, the VMB2DC-20 becomes a complete solution for dimming 230?V lights (halogen, LED, …).

This combination is the ideal retro-fit replacement for older VMBDMI(-R) modules: same cabinet space, but with the benefits of modern 0/1-10?V control and broader compatibility with dimmable LED lighting.

Features

• different operation modes: moment control, on/off control, timers, slow on/slow off, dimming, moods...
• Free programmable timer functions (using Velbus Link software and USB interface: VMBUSB or VMBRSUSB)
• 0 to 10V output or 1 to 10V output possibility
• 2 independent adjustable channels
• 250 possible id addresses
• on board buttons for testing purposes
• velbus® connection
• firmware upgradeable through the Velbus system
