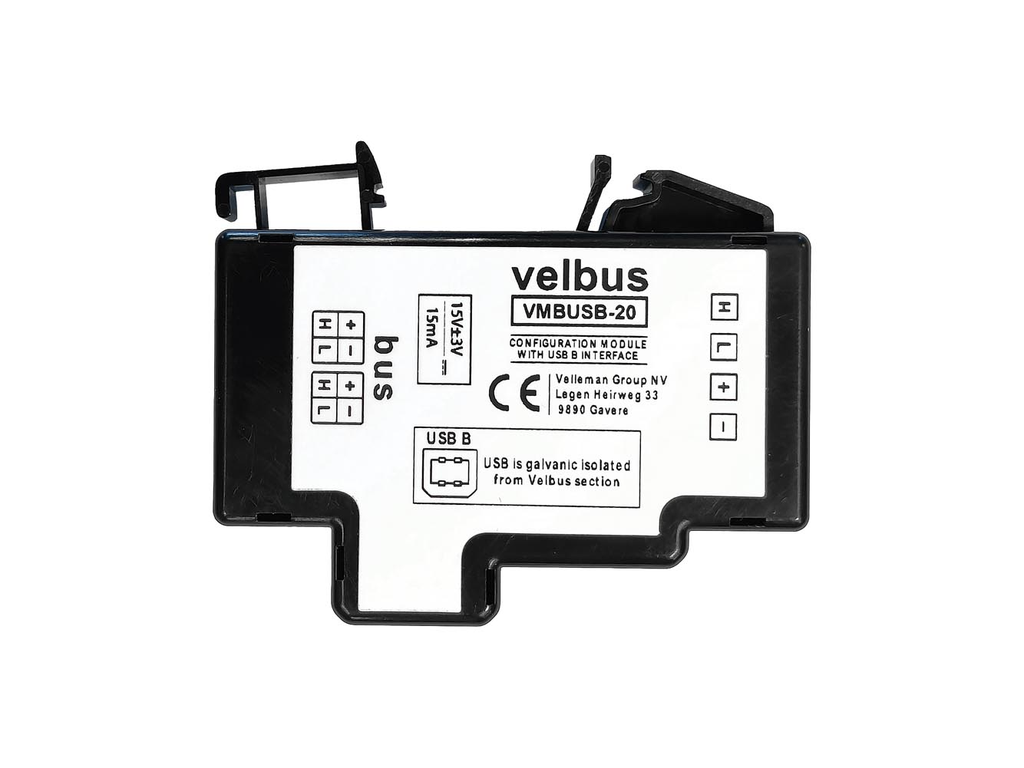

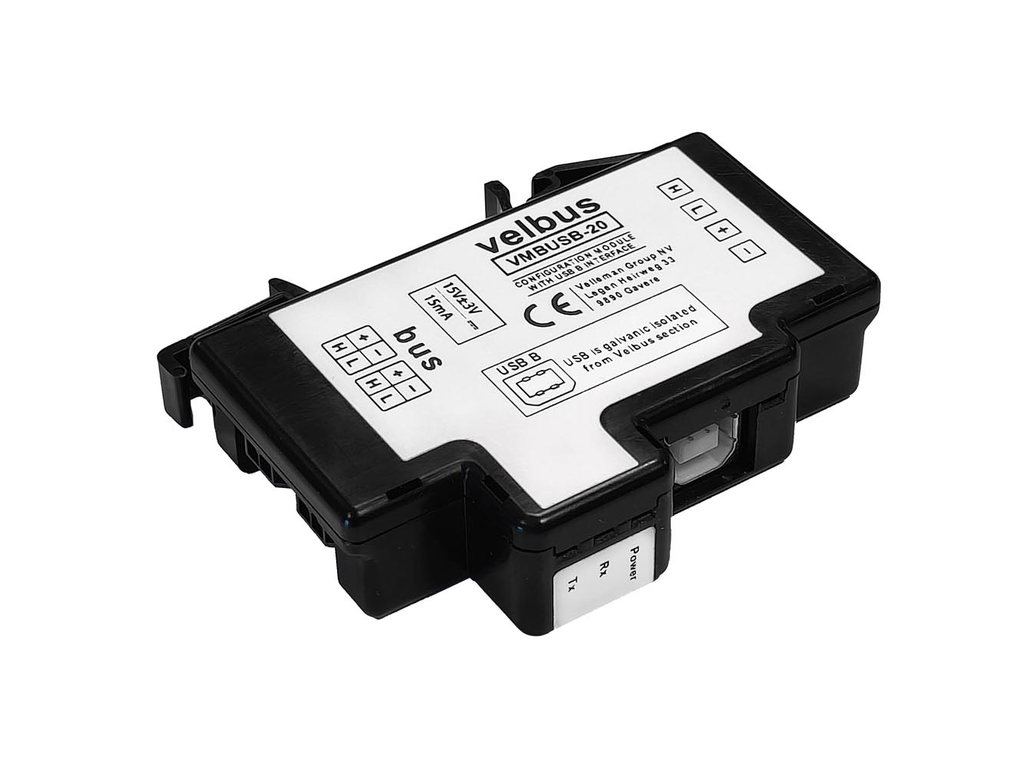

VMBUSB-20Velbus USB interface & configuration module

100,00 € 100,00 €
  • Colour
  • Protocol
  • Connector type 1
  • Connector type 2
  • Connector type 3
  • Current consumption
  • Input voltage rating VDC range
  • Electrical protection
  • USB input current
  • Number of ports
  • Instruction manual languages
  • Height unit
  • Width unit
  • Depth unit
  • Weight unit
  • Material
  • Colour unit
  • Additional colour
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Downloads
VelbusLink (EN/NL/FR) - Latest version Velbus Installation Guide, Part 1: Hardware and Cabling Velbus Installation Guide, Part 2: Configuration Velbus Troubleshooting Guide VelbusLink 10.9.7 (EN/NL/FR) - Previous version Velbus consumption calculator
Info Sheets
Velbus actions by module (click on an action to see a description)

Unlock seamless connectivity with your Velbus installation via the VMBUSB module.

With our complimentary Velbuslink software, you can effortlessly extract, store, modify, and re-upload your Velbus configuration.

Your Velbus setup, your way.

Enhanced Safety: Our galvanically separated USB connection ensures secure configuration of your installation.

Safety is our priority, empowering you to configure with confidence.

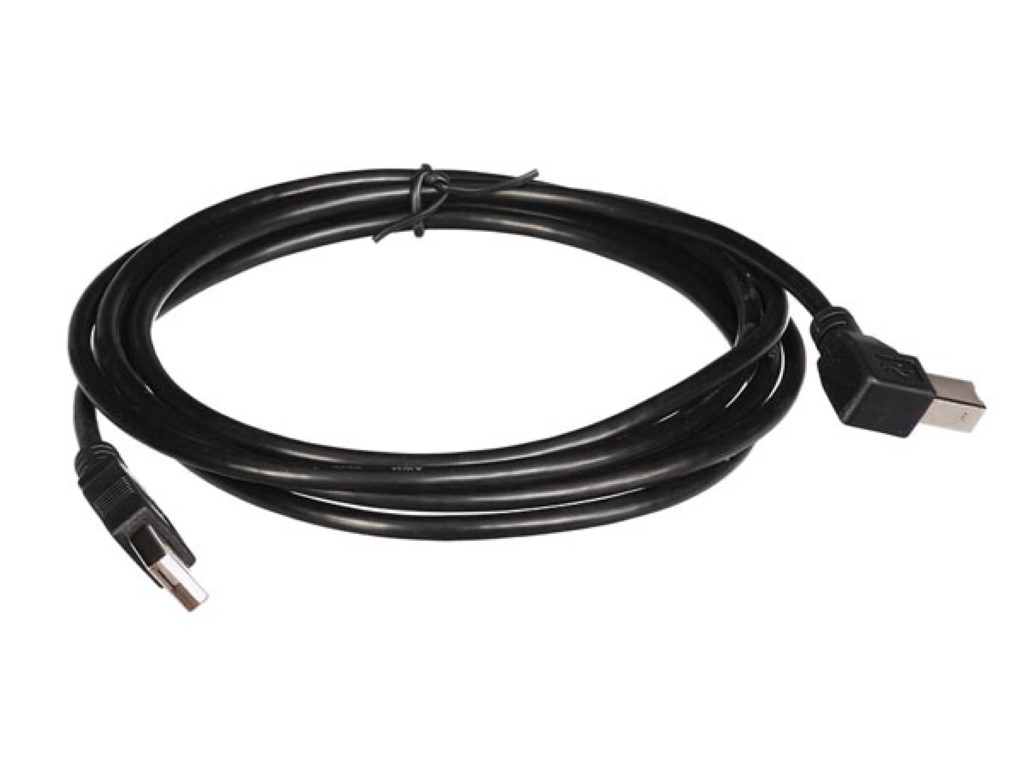

Flexible USB Cable: Your package includes a 2.5-meter angled USB B to USB A cable, offering the freedom to configure your installation from a comfortable distance while keeping the electrical cabinet securely closed.

Simplified Installation: Effortlessly mount the VMBUSB module on the DIN rail, disconnecting it once your configuration is complete.

Its compact 1 DIN module size preserves your cabinet space - maximizing efficiency.

Features

  • Galvanic separation between the computer and the VELBUS system
  • Velbus:
  • Full VELBUS 16.6kbps protocol compliant
  • Velbus short circuit protection to power and bus
  • Self restoration after bus error
  • USB:

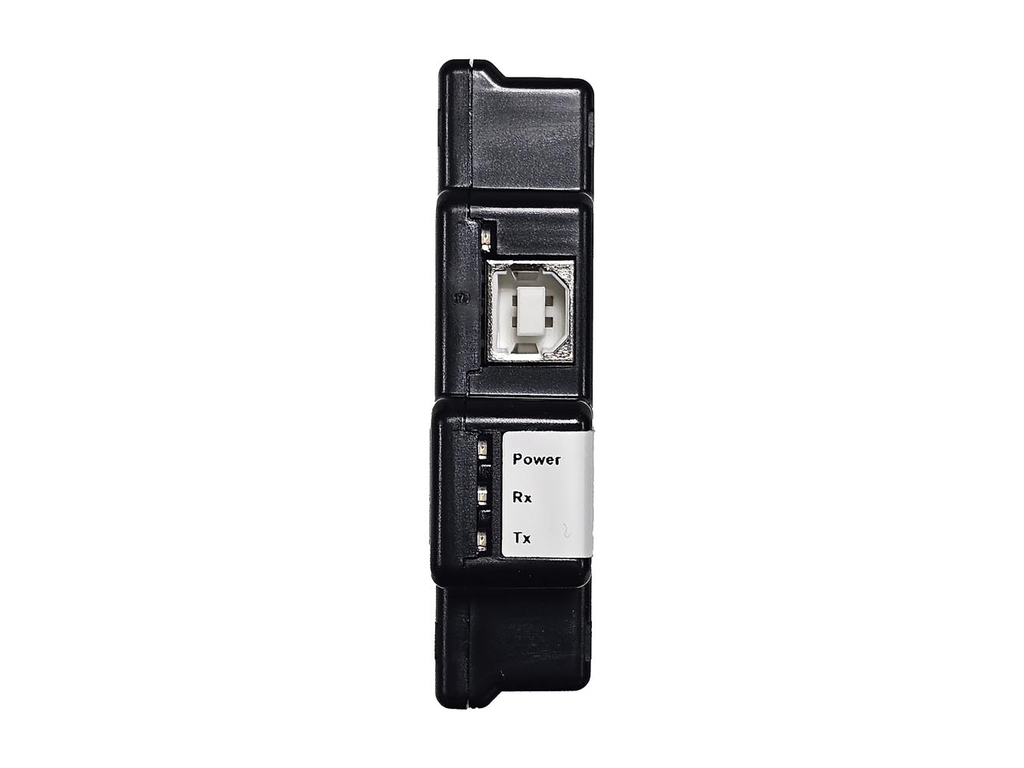

  • USB power indication
  • USB V2.0 compatible (full speed 12Mb/s)
  • Uses standard Microsoft™ Windows™ 'usbser.sys' driver

Specifications

Connectivity & Smart Features
Protocol Velbus / USB
Connector type 1 Velbus (2x Molex connection)

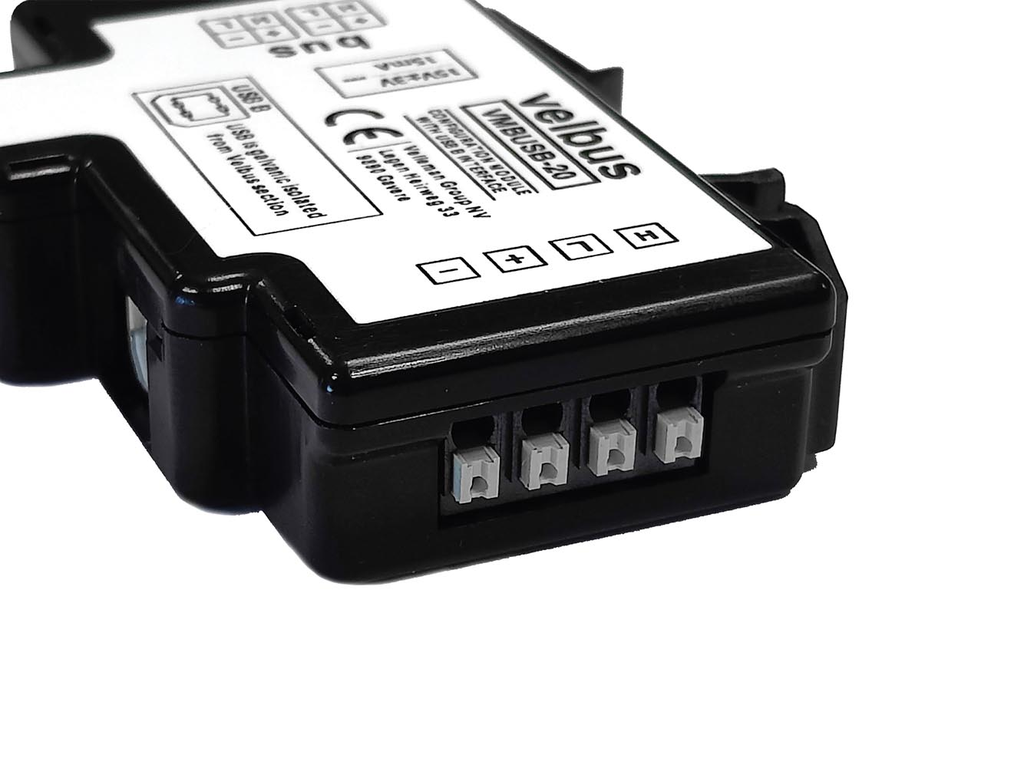

Connector type 2 Velbus (1x WAGO push-connections)
Connector type 3 USB
Electrical Properties
Current consumption 15 mA
Input voltage rating VDC range 12-18 V
Electrical protection Short-circuit
USB input current 35 mA
Functional Features
Number of ports 3
Other
Instruction manual languages Dutch / English / French
Physical properties
Height unit 76 mm
Width unit 18 mm
Depth unit 62 mm
Weight unit 40 g
Material ABS
Colour unit Black
Additional colour White
